Laser-Cut SMT Stencils
Precision laser-cut stainless steel stencils for consistent solder paste printing - frameless and framed options with 24h turnaround.
| Material | 301 Stainless Steel |
| Thickness | 0.06 - 0.30 mm |
| Cutting | Laser cut + electropolish |
| Min. Aperture | 0.05 mm |
| Frame Options | Frameless / framed |
| Lead Time | 24h standard |
Why Our Stencils
Print quality starts with the stencil
Precision Laser Cut
Aperture accuracy within +/-10um for sharp paste release.
Electropolished Walls
Smooth aperture walls improve paste transfer efficiency.
24h Turnaround
Standard stencils ship within 24 hours of file approval.
Inside the Process
From laser cutting to final inspection, every stencil is controlled end to end

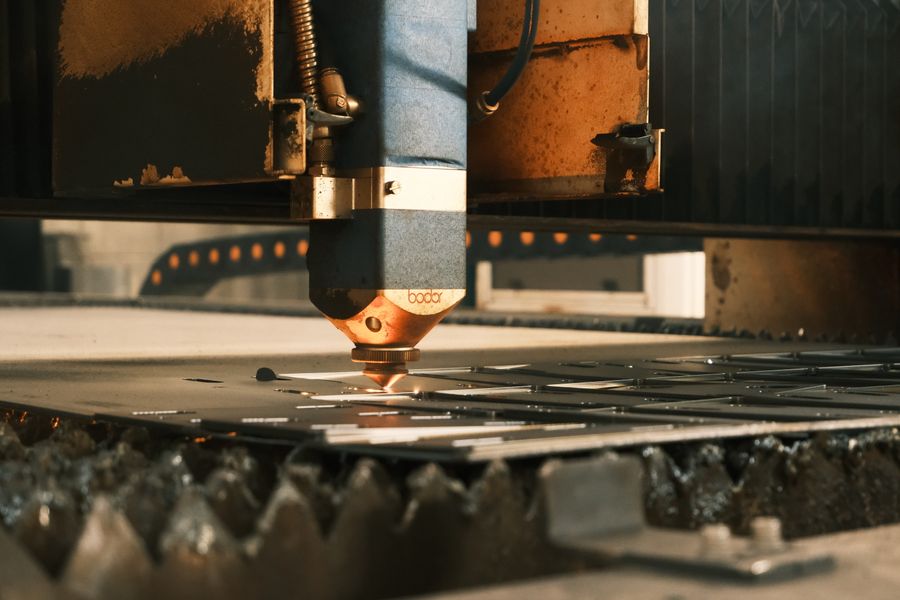

Precision Laser Cutting
301 stainless steel is shaped with micron-level accuracy - aperture tolerance within +/-10um and smooth burr-free walls.
Printing Yield First
Precision apertures with electropolished walls release paste cleanly, reducing bridging and insufficiency at the source.

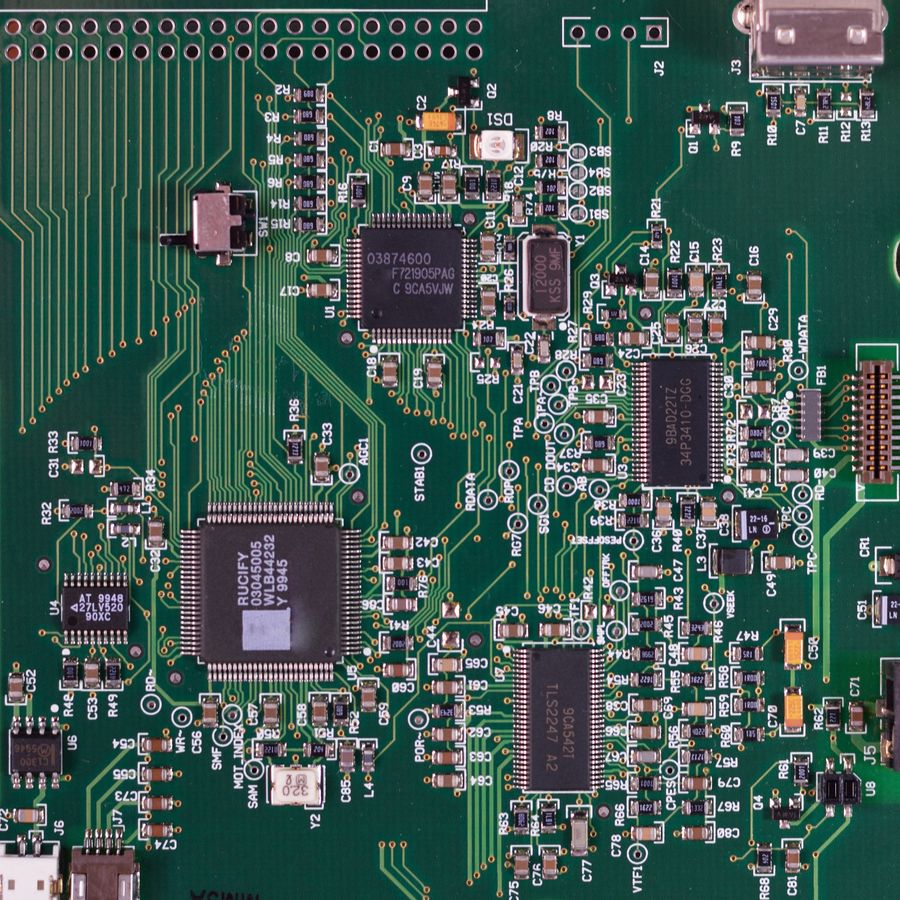

Alignment & Inspection
Every stencil is verified against the real PCB, tension-tested and 100% microscope-checked before shipping.
Stencil Options & Uses
Frameless Stencil
Cost-effective for prototype runs with your own tension frame.
Framed Stencil
Fixed aluminum frame, ready for production printers.
Step Stencil
Multi-thickness areas for uneven component heights.
Prototype Frame
Adjustable frame solution for low-volume SMT lines.
